Description

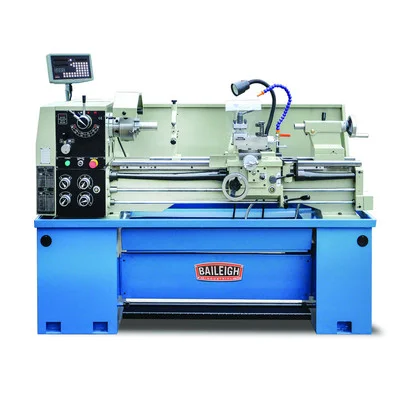

Baileigh 220V 1Phase Lathe 14″ Swing 40″ Length with Digital Readout (1016623) offers precision and reliability for small to medium shops and schools. This lathe features a DRO for accurate cutting and a powerful 3 hp motor.
The Baileigh 1016623 metal lathe provides a 14″ swing and 40″ length, making it perfect for a variety of machining tasks. With 8 spindle speeds ranging from 90 to 1,800 rpm, this lathe runs on 220-volt single-phase power. The precision-ground and hardened ways ensure years of tight tolerances, and the gap lathe design allows you to remove a section of the slide for larger diameters.
- Specifications and Dimensions
- Length: 76 in.
- Width: 30 in.
- Height: 61 in.
- Net Weight: 1450 lbs
- Spindle Speeds: 90 – 1800 rpm
- Spindle Bore: 1.5″
- Spindle Nose: D1-4″
- Threads Imperial Qty Speed: 44 / 4-112 T.P.I.
- Threads Metric Qty Speed: 22 / .45-7.5 mm
- Spindle Taper Sleeve: Morse #3
- Spindle Taper Nose: Morse #5
- Tailstock Quill Dia: 1.772″
- Tailstock Quill Taper: Morse #3
- Tailstock Quill Travel: 4.72″
- Bed Length: 17156
- Bed Width: 7.086″
- Main Motor: 2 hp
- Longitudinal Feeds Imperial Qty Speed: .0012″ – .0294″/rev.
- Lead Screw Diameter: .866″
- Lead Screw Thread Pitch: 4 T.P.I.
- Max. Swing Over Bed: 14″
- Max. Swing Over Cross Slide: 8.6″
- Max. Swing In Gap Dia: 19.9″
- Cross Feeds Imperial Qty Speed: .0003″ – .01″/rev.
- Distance Between Centers: 40″
- Feed Rod: .708″ dia.
- Power: 220V / 1-phase
- Shipping Weight: 1450 lbs
- Shipping Dimensions (Inches): 79x44x63
- Key Features and Benefits
- Includes 3-jaw and 4-jaw chucks for versatile holding options
- Pre-installed digital readout (DRO) for precise cuts
- Quick-change tool post for efficient tooling changes
- Integrated coolant system extends machine life
- Gap lathe design for larger diameter work
- Comes with steady rest, follow rest, face plate, and safety foot brake
- Halogen work light for better visibility
- Covered by a 1-year parts warranty
- Lifetime technical support by phone from experienced reps
