Description
Details:

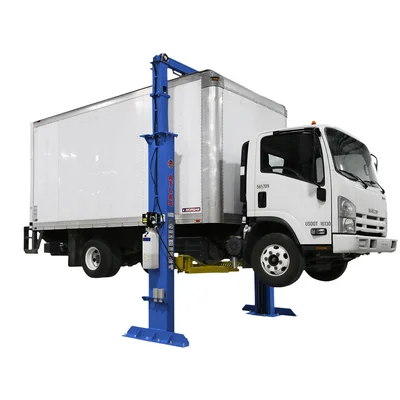

The Atlas Platinum PVL15 is an ALI CERTIFIED, commercial grade, overhead two-post lift designed to accommodate both long wheel base trucks and passenger cars. The Atlas Platinum PVL15 has an overall height of 174 1/2″ (14′ 6 1/2″), but can be extended by an extra 2 feet to accommodate taller vehicles with the Height Extension Kit.
This product features an ALLY Hydraulic AL2300 Power Unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.
Features:
- 15,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall & Extra Wide
- Overall Height 174 1/2″ (14′ 6 1/2″)
- Padded Carriages
- Symmetric Arms
- Professional Grade Arm Lock Restraint System
- Dual Direct-Drive Hydraulic Cylinders
- Free 8 Piece Truck Adapter Set and 4 Screw-Up Frame Adapters
- Heavy Duty 3/8″ Equalization Cables
- Mounting Hardware Included
- Premium ALLY AL2300 Power Unit View Power Unit Specs
Includes:
- Truck Adapter Set
- Mounting Hardware
Specifications:
| Capacity | 15,000 lbs |
| Overall Height | 174 1/2″ (14′ 6 1/2″) |
| Overall Floor Width | 148″ (12′ 4″) |
| Outside Column to Outside Column | 135″ (11′ 3″) |
| Max Lift Height w/Truck Adapters | 87 1/2″ (7′ 3 1/2″) |
| Max Lift Height w/o Truck Adapters | 72 3/4″ (6′ 3/4″) |
| Minimum Arm Height | 6″ |
| Inside Columns | 119 1/4″ (9′ 11 1/4″) |
| Drive Thru | 107 1/2″ (8′ 11 1/2″) |
| Column Size | 8″ x 14 1/2″ |
| Lifting Time | 80S |
| Adapter Heights | 4 ea 5″ & 10″ |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Motor/Electrical Requirement | 220V single (1) phase / 30 amp breaker is required. |
| Weight | 2,600 lbs |
