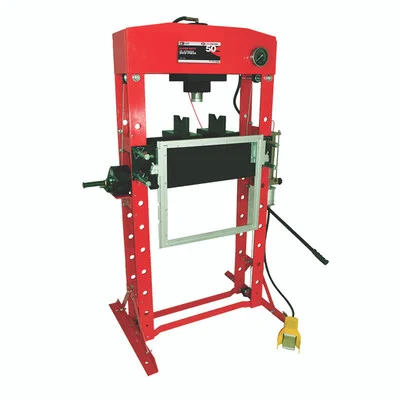

American Forge & Foundry 50-Ton Super-Duty Shop Press (854ASD)

Description

The American Forge & Foundry 50-Ton Super-Duty Shop Press (854ASD) is an essential piece of equipment for demanding tasks in various professional environments. Engineered with a focus on strength and functionality, this press is well-suited for a range of applications, including straightening, bending, pressing, and stamping. Its construction features a fully welded frame made from heavier gauge steel, ensuring outstanding stability and a long operational life. This design commitment positions the 854ASD as a highly reliable tool for heavy-duty truck service, spring shops, industrial settings, and comprehensive automotive repair. The inclusion of a lateral head adjuster significantly enhances its versatility, allowing for smooth side-to-side movement of the press head, a feature that sets it apart from many standard shop presses.

KEY FEATURES AND BENEFITS:

• Exceptional Strength and Reliability: Constructed with a fully welded frame and heavier gauge steel, providing superior strength and longevity for consistent performance under pressure.
• Enhanced Operational Versatility: A lateral head adjuster enables smooth side-to-side positioning of the press head, expanding the range of work and making it adaptable for various tasks.
• Effortless Bed Adjustment: Equipped with a heavy-duty cable winch system, the press bed can be effortlessly raised and lowered through 7 different positions, allowing operators to quickly adapt to different workpiece sizes and tasks.
• Rapid Pressing Capability: Features a dual air motor operation that facilitates a faster pressing process, significantly improving efficiency in busy work environments.
• Precise Force Monitoring: A large, liquid-filled glycerin gauge accurately displays the pressing force being applied, providing operators with critical information for precise control and preventing over-pressurization.
• Superior Operator Safety: Includes a shatter-resistant polycarbonate guard that offers maximum protection against flying debris, ensuring a safer working environment for the operator.
• Comprehensive Accessory Set: Comes with a 2-piece press plate set and a 10-piece pin and bearing press adapter set, allowing the press to be used for a wide variety of specific pressing applications right out of the box.

SPECIFICATIONS:

• Bed Depth: 10.12 in.
• Bed Height: 13 – 53.6 in. (adjustable range)
• Bed Rail Opening: 9.25 in.
• Bed Width: 28.75 in.
• Capacity: 100,000 lb. (50 Ton)
• Standards: ASME PASE 2014
• Duty Level: Super Heavy Duty
• Height: 75 in.
• Number of Bed Adjustments: 7
• Ram Stroke: 7.75 in.
• Throat Depth: 7.25 in.
• Throat Width: 16.75 in.
• Width: 54 in.
• Working Air Pressure: 110 – 125 PSI

HOW TO USE:

1. Preparation: Ensure the press is placed on a level, stable surface and connected to an air supply providing 110-125 PSI. Familiarize yourself with the controls and safety features, especially the polycarbonate guard.
2. Bed Adjustment: Use the heavy-duty cable winch system to effortlessly raise or lower the press bed to one of the 7 available height positions, aligning it appropriately for your workpiece.
3. Workpiece Placement: Carefully position your workpiece on the press plates or appropriate adapters on the press bed. If using the lateral head adjuster, slide the press head to the optimal position over your workpiece.
4. Accessory Selection: Select the necessary press plates, pin, or bearing press adapters from the included 10-piece set that are suitable for your specific pressing, bending, or straightening task.
5. Pressing Operation: Engage the dual air motor to begin the pressing process. Monitor the large, liquid-filled glycerin gauge to accurately observe the applied force, ensuring it remains within safe working limits for your material and preventing overload.
6. Safety First: Always ensure the shatter-resistant polycarbonate shield is properly in place during operation to protect against flying debris. Never bypass safety mechanisms.
7. Completion: Once the desired action is complete, release the ram pressure and carefully remove the workpiece from the press.

BENEFITS OF USING AMERICAN FORGE & FOUNDRY 50-TON SUPER-DUTY SHOP PRESS (854ASD):

• Provides significant pressing power for a wide range of heavy-duty applications.
• Offers precise control over the pressing force, enhancing accuracy in tasks.
• Reduces manual effort for bed adjustments due to its winch system.
• Increases overall efficiency in the workshop with faster pressing cycles.
• Contributes to a safer working environment through integrated protective features.
• Supports diverse project requirements with its adaptable head movement and included accessories.
• Represents a reliable long-term investment due to its robust construction.

FEATURES:

• Integrated overload protection system.
• Protective guard for operator security.
• Designed to meet ASME PASE 2014 safety standards.
• Utilizes a heavy-duty cable winch for raising and lowering the bed.
• Lateral head adjuster allows for horizontal movement of the press head.
• Dual air motor system facilitates quick ram advancement.
• Glycerin-filled gauge provides accurate pressure readings.
• Includes a comprehensive 10-piece pin and bearing press adapter set.
• Comes with a 2-piece press plate set.
• Built with a fully welded frame for structural integrity.
