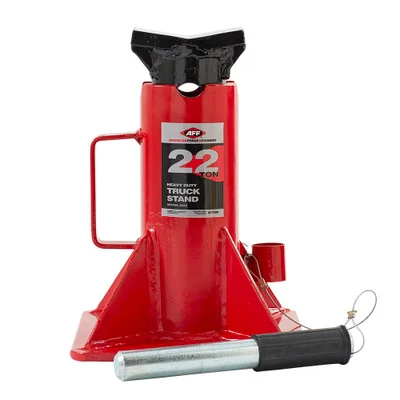

American Forge & Foundry 22-Ton Pin-Style Safety Stand (6522)

Description

The American Forge & Foundry 22-Ton Pin-Style Safety Stand (6522) is engineered to provide secure and stable support for heavy trucks, trailers, and various equipment in industrial, agricultural, and construction work environments. Designed with a focus on safety and reliability, this robust stand ensures that vehicles remain securely elevated during essential maintenance and repair operations. Its heavy-gauge steel construction and secure pin-style locking mechanism offer dependable performance under significant loads, making it an indispensable tool for professional settings where safe vehicle support is paramount.

KEY FEATURES AND BENEFITS:

• High load capacity: Supports up to 22 tons (44,000 lbs) when used in matched pairs, accommodating a wide range of heavy-duty vehicles and machinery.
• Enhanced security: The pin-style design provides maximum stability and security, ensuring the load remains firmly supported even under demanding conditions.
• Structural integrity: Constructed with a heavy-gauge steel frame, this stand is designed to prevent distortion and warping, contributing to its extended service life and consistent performance.
• Optimal load contact: A large V-shaped saddle is designed to establish better contact with the vehicle’s frame or designated support points, minimizing the risk of slippage.
• Adjustable support: Offers four height positions, allowing the stand to be adjusted from a low height of 12 inches to a maximum height of 20 inches, providing flexibility for different vehicle types and tasks.
• Stable footprint: The large 10-inch by 10-inch base significantly enhances overall stability and security, distributing the load effectively and reducing the chance of tipping.
• Convenient portability: An integrated carrying handle facilitates easy transport and positioning of the stand around the work area.
• Loss prevention: The height adjustment pin is tethered to the stand, preventing its loss during adjustments or storage.
• Safety compliance: Meets ASME-PASE 2014 safety standards when properly used in pairs, assuring adherence to recognized industry safety protocols.

SPECIFICATIONS:

• Model: 6522
• Capacity (per pair): 22 tons
• Low height: 12 inches
• High height: 20 inches
• Adjustment interval: 3 inches
• Base dimension: 10″ x 10″
• Saddle dimension: 3″ x 3-7/8″
• Ship weight: 52 lbs (per individual stand)
• Included in product: One (1) American Forge & Foundry 22-Ton Pin-Style Safety Stand (Model 6522)

HOW TO USE:

1. Prepare the vehicle: Park the vehicle on a hard, level, and stable surface. Engage the parking brake and place the transmission in “park” (for automatic) or a low gear (for manual). Use wheel chocks on the wheels not being lifted to prevent any movement.
2. Determine support points: Consult the vehicle’s owner’s manual or service guide to locate the recommended support points or frame areas for using jack stands.
3. Lift the vehicle: Using an appropriate jack with adequate capacity, carefully lift the vehicle to a height slightly above the desired support height for the jack stand.
4. Position the stand: Place the American Forge & Foundry 22-Ton Pin-Style Safety Stand (6522) directly under the designated support point. Ensure the V-shaped saddle is centered on the load-bearing area. Remember to use two stands for supporting one end of the vehicle.
5. Adjust height: Pull and secure the tethered height adjustment pin, then adjust the stand to the desired height position (12″, 15″, 18″, or 20″). Reinsert the pin fully through both sides of the stand’s column and the inner tube to lock the height.
6. Lower onto stands: Slowly and carefully lower the vehicle onto the positioned jack stands, ensuring the load settles securely into the V-saddle.
7. Remove jack: Once the vehicle is fully supported by the jack stands, carefully remove the lifting jack.
8. Before working: Lightly rock the vehicle to confirm it is stable and securely supported by the stands before commencing any work underneath.

BENEFITS OF USING AMERICAN FORGE & FOUNDRY 22-TON PIN-STYLE SAFETY STAND (6522):

• Provides a secure and stable foundation for heavy vehicles during maintenance, significantly reducing the risk of vehicle movement or collapse.
• Enhances workshop safety by offering reliable support once a vehicle is lifted, freeing up the jack for other tasks.
• Its robust construction ensures long-term reliability and performance, even with frequent use in demanding environments.
• The adjustable height feature accommodates a variety of vehicle types and allows for ergonomic working positions.
• The large base contributes to superior stability, providing peace of mind for technicians working under heavy loads.

FEATURES:

• Heavy-duty steel construction for structural integrity.
• V-shaped saddle designed for optimal load contact.
• Pin-style locking mechanism for secure height adjustments.
• Four distinct height settings (12″, 15″, 18″, 20″).
• Integrated carrying handle for convenient relocation.
• Tethered adjustment pin prevents misplacement.
• Wide 10″ x 10″ base for enhanced stability.
• Meets ASME-PASE 2014 safety standards when used in pairs.
