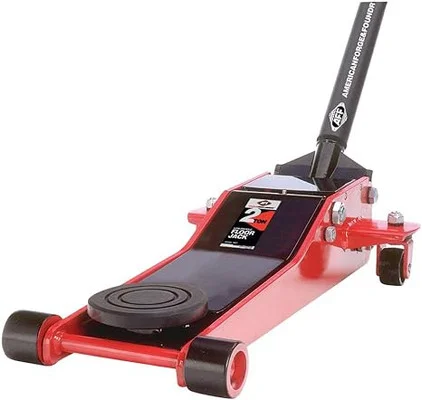

American Forge & Foundry 2-Ton Low Profile Floor Jack (202T)

Description

The American Forge & Foundry 2-Ton Low Profile Floor Jack (202T) is engineered for efficiency and reliability in automotive lifting. Designed with both professional mechanics and dedicated enthusiasts in mind, this hydraulic floor jack excels at providing superior access to vehicles with minimal ground clearance. Its exceptionally low 2-3/4-inch pickup height makes it an indispensable tool for sports cars, modified vehicles, and custom builds. The advanced twin hydraulic system ensures rapid lifting, reducing the time spent on each job, while the precision release valve allows for a smooth and controlled lowering of the load, enhancing safety during operation. Built from heavy-duty steel and finished with a UV powder coating, the 202T is constructed to withstand the rigors of daily garage and shop use, offering long-lasting performance and resistance to wear. The inclusion of a pinned steel saddle with a rubber pad protects vehicle lift points from damage, and the 50-inch foam-covered two-piece handle provides comfortable operation and convenient storage. Safety is paramount, with an integrated safety valve preventing overloading and protecting both the equipment and the user. Maneuverability is also optimized through ball-bearing rear-mounted swivel casters, making it easy to position the jack exactly where it’s needed.

KEY FEATURES AND BENEFITS:

• Ultra-Low Profile Access: A super low pickup height of 2-3/4 inches allows for easy positioning under custom vehicles and those with minimal ground clearance.
• Rapid Lifting Speed: The twin hydraulic system significantly increases lifting speed, allowing for quicker service times without compromising power.
• Controlled & Safe Lowering: Universal joint technology combined with a precision release valve ensures a smooth, gradual, and controlled descent of the load.
• Enhanced Durability: Features a tough UV powder-coated frame, providing excellent protection against corrosion and wear for extended product life.
• Vehicle Protection: A pinned steel saddle equipped with a rubber pad safeguards the vehicle’s frame and undercarriage from scratches or damage during lifting.
• User Comfort & Portability: The two-piece, foam-covered 50-inch handle offers ergonomic grip during use and facilitates easy storage and transport.
• Overload Protection: A built-in safety valve prevents the jack from being overloaded beyond its 2-ton capacity, ensuring safe operation.

SPECIFICATIONS:

• Model: 202T
• Capacity: 2 Tons (4,000 lbs)
• Low Height: 2.75”
• High Height: 20”
• Chassis Length: 27”
• Overall Width (front): 11.75”
• Overall Width (rear): 15”
• Ship Weight: 99 lbs
• Included in Product: 2-Ton Low Profile Floor Jack (202T) unit, two-piece 50″ foam-covered handle, pinned steel saddle with rubber pad.

HOW TO USE:

1. Prepare the Vehicle: Park the vehicle on a flat, level, and solid surface. Engage the parking brake and place wheel chocks on the wheels that will remain on the ground.
2. Position the Jack: Locate the vehicle’s recommended lifting points (refer to your vehicle owner’s manual). Slide the American Forge & Foundry 202T floor jack under the vehicle, aligning the saddle with the designated lifting point. Ensure the jack is centered and stable.
3. Lift the Vehicle: Insert the handle into the pump sleeve. Pump the handle steadily to begin raising the vehicle. Continue pumping until the vehicle is lifted to the desired height, ensuring it is stable throughout the process.
4. Place Jack Stands: Once the vehicle is at the desired height, immediately place appropriately rated jack stands under the vehicle’s designated support points. Lower the vehicle slowly until it rests securely on the jack stands. Never work under a vehicle supported only by a floor jack.
5. Lower the Vehicle: When work is complete and the jack stands are removed, slowly rotate the handle or release valve to gradually lower the vehicle back to the ground. Once fully lowered, remove the floor jack.

BENEFITS OF USING AMERICAN FORGE & FOUNDRY 2-TON LOW PROFILE FLOOR JACK (202T):

• This jack provides exceptional accessibility for vehicles with limited undercarriage clearance, making it suitable for a wide range of modern and specialized cars.
• Its design enhances work efficiency by allowing faster vehicle lifts, saving valuable time in any garage or service bay.
• The controlled lowering mechanism significantly improves safety during operation, reducing the risk of sudden drops.
• Constructed for heavy-duty use, it offers extended product life, representing a sound investment for professional and serious home users alike.
• The integrated safety features provide peace of mind by preventing accidental overloading, ensuring secure lifting operations.

FEATURES:

• Minimizes required under-vehicle clearance for placement.
• Employs a dual-cylinder pumping mechanism for rapid ascent.
• Offers precise and gradual load descent control.
• Frame finished with a UV-resistant powder coat for enhanced resilience.
• Equipped with a secure, padded contact point to protect vehicle surfaces.
• Features a segmented handle with comfortable handgrips for easy handling.
• Incorporates an internal valve to prevent excessive load application.
• Utilizes smooth-rolling rear swivel casters for effortless positioning.
