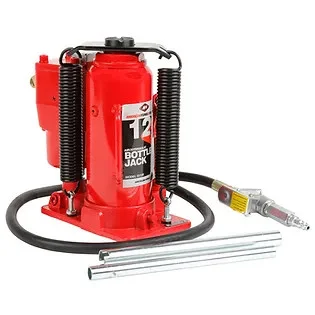

American Forge & Foundry 12-Ton Air-Assist Bottle Jack (5512B)

Description

The American Forge & Foundry 12-Ton Air-Assist Bottle Jack (5512B) is engineered for demanding lifting tasks across various heavy-duty sectors. Its air/hydraulic design offers efficient and fast lifting, significantly reducing operational time compared to manual-only jacks. A built-in relief mechanism acts as a safety bypass system, effectively preventing accidental overload and ensuring the jack operates within its safe capacity. Uniquely, this jack also provides the flexibility of manual operation, making it fully functional even when an air source is not available. This versatility ensures continuous utility in diverse work environments. The design incorporates centered pumps and rams with heat-treated pistons, which contribute to balanced lifting and easier positioning under heavy loads. The saddles are crafted from machine-hardened steel, designed to withstand immense pressure and resist wear for extended service life. Internally machined oil passages, smooth bearing surfaces, and close tolerances further enhance the jack’s durability, minimizing internal friction and wear for a longer operational lifespan.

KEY FEATURES AND BENEFITS:

• Air/Hydraulic Design: Delivers rapid, efficient lifting for reduced downtime.
• Overload Protection: Built-in safety bypass system prevents exceeding rated capacity.
• Manual Operation Capability: Allows use even when air supply is unavailable.
• Centered Pump and Ram: Ensures balanced lifting and easier jack positioning.
• Hardened Steel Saddle: Provides durability under high pressure and extended usage.
• Internally Machined Components: Enhances fluid flow and reduces friction for long-term performance.

SPECIFICATIONS:

• Capacity: 12 Tons (24,000 lbs)
• Standards: ASME PALD 2009
• Dimensions: 10.25″ x 10.5″ x 6.5″
• Duty Level: Heavy Duty
• Number of Handle Pieces: 2
• Operation: Air/Hydraulic
• High Height: 19-1/2″
• Low Height: 10-1/4″
• Extension (Screw Extension): 2-1/2″
• Weight: 29 lb (13 kg)
• Working Air Pressure: 110 – 120 PSI
• Included in Product: 2-piece handle

HOW TO USE:

• Prepare the Load: Ensure the vehicle or equipment is on a stable, level surface. Block wheels to prevent movement.
• Position the Jack: Place the jack under the designated lifting point. Ensure the saddle is centered and in contact with the load.
• Connect Air (for Air-Assist Operation): Connect an air hose to the jack. Verify air pressure is between 110–120 PSI.
• Lift the Load:
  • Air-Assist: Activate the air control to raise the ram quickly.
  • Manual Operation: Insert handle and pump manually to lift the load.
• Secure the Load: Use jack stands at designated support points. Never work under a load supported only by the jack.
• Lower the Load: Turn the release screw counter-clockwise to lower. Dual return springs assist in controlled retraction.
• Remove Jack: Once the load is fully supported or lowered, remove the jack from under the equipment.

BENEFITS OF USING AMERICAN FORGE & FOUNDRY 12-TON AIR-ASSIST BOTTLE JACK (5512B):

• Improves Productivity: Fast air-assisted operation reduces lifting time and physical effort.
• Operational Versatility: Manual mode ensures functionality even without an air compressor.
• Built for Durability: High-strength steel, heat-treated pistons, and precision internals provide long-lasting performance.
• Safety Focused: Features like the overload bypass and dual return springs enhance user and load safety.
• Industry Compliant: Manufactured to meet ASME PALD 2009 standards for professional use.
• Minimizes Downtime: Designed for reliability and consistent lifting in rugged environments.

FEATURES:

• Designed for heavy-duty trucks, farm, mining, and construction equipment
• Equipped with high-efficiency air pump for fast lifting
• Includes internal relief mechanism for overload protection
• Operates manually when no air source is available
• Centered piston and pump for balanced lifting
• Heat-treated pistons for improved strength
• Machine-hardened steel saddle for durability
• Internally machined oil passages for smooth fluid motion
• Precision bearing surfaces to reduce internal wear
• Close-tolerance construction for improved efficiency
• Pre-tested to 150% of rated capacity for safety assurance
• Dual return springs for smooth and controlled retraction
• Built-in safety bypass system to prevent overloading
