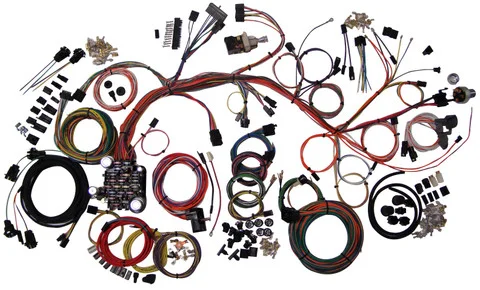

American Autowire 1961-64 Chevy Impala Classic Update Kit (AAW510063)

Description

The American Autowire 1961-64 Chevy Impala Classic Update Kit (AAW510063) is a comprehensive wiring solution designed to completely replace the aging electrical system in your classic Impala, Bel Air, or Biscayne. This kit is built for projects that require more circuits and modern functionality than a factory harness could provide. It simplifies the process of integrating today’s popular aftermarket components, such as electronic fuel injection (EFI) and modern gauges, while ensuring the reliability of your entire electrical system from the headlights to the taillights. Every wire is clearly labeled and color-coded, making installation and future troubleshooting straightforward.

KEY FEATURES AND BENEFITS:

• The modern ATC fuse panel offers increased circuit protection and fits in the original location for a factory-like appearance.
• Pre-built dash harness with an exclusive gauge cluster disconnect system makes servicing or adapting to aftermarket gauges easy.
• Extended wiring supports custom routing for unique engine and transmission combinations.
• Dedicated wiring for HEI and EFI systems ensures proper integration with modern upgrades.
• 175 amp mega fuse kit with 6-gauge charge cable included for high-output alternators.
• New switches (ignition, headlight, and dimmer) included for a reliable and complete electrical update.

SPECIFICATIONS:

• ATC Fuse Panel: New panel with modern ATC fuses.
• Harnesses: Pre-built dash, engine, and front light harnesses with extended leads.
• Rear Body Wiring: Rear body harness with extra-long leads and a pre-assembled trunk lid harness.
• Switches: Includes a headlight switch with internal circuit breaker, a new floor dimmer switch, and a replacement ignition switch.
• Connectors: Original-replacement connectors, terminals, and lamp sockets.
• Charge System: 175 amp mega fuse kit with 6-gauge charge cable.
• Documentation: Full-color schematics and detailed installation instructions.

HOW TO USE:

1. Remove the old wiring: Carefully disconnect and remove the existing harnesses, noting their placement.
2. Install the fuse panel: Mount the new ATC fuse panel in the original factory location.
3. Install the dash harness: Route and connect the pre-built dash harness, using the gauge cluster disconnect system for stock or aftermarket gauges.
4. Install the engine/front light harness: Route the harness through the firewall and engine bay, connecting lights, switches, and engine components.
5. Install the rear body wiring: Route the harness to taillights, license plate light, and rear components.
6. Make final connections: Connect accessories such as the alternator, distributor, and aftermarket components using the provided connectors and schematics.

BENEFITS OF USING AMERICAN AUTOWIRE 1961-64 CHEVY IMPALA CLASSIC UPDATE KIT (AAW510063):

• Improved Safety: Modern ATC fuses and circuit breakers provide superior protection against shorts and overloads.
• Enhanced Reliability: New, high-quality wiring eliminates failures from brittle or aging harnesses.
• Simplified Installation: Pre-built sections, color-coded GXL wires, and clear instructions make setup easier.
• Support for Modern Upgrades: Provides power and wiring for EFI, HEI, air conditioning, and other modern accessories.

FEATURES:

• Uses modern GXL wire resistant to heat and moisture.
• Wire functions labeled every 3 to 5 inches for easy identification.
• Includes a six-way power accessory plug for convenient power sourcing.
• Dash harness has a dedicated connector for 1969-and-later GM steering columns.
• Replacement ignition switch compatible with HEI and EFI systems.
• Extended leads on the front harness for flexible engine and transmission swaps.
• Bulkhead connectors included for a clean interior-to-engine bay pass-through.
