Description

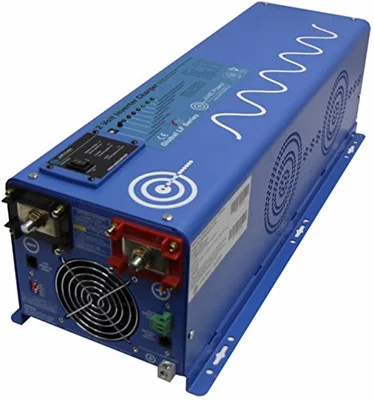

AIMS Power 4000W Pure Sine Low-Frequency Inverter Charger is a powerful and reliable solution for residential and industrial applications that require high-quality, consistent power. The inverter’s pure sine wave technology ensures clean, stable power, ideal for sensitive equipment. With a split-phase output, it is versatile enough to work with various electrical systems. The built-in multi-stage charger is compatible with lithium LiFePO4, AGM, gel, and lead batteries. Other notable features include a remote panel for easy monitoring, a battery priority selector, and an automatic transfer switch. Designed for durability, this unit is marine-coated for extra protection in harsh environments.
Key Features & Specifications:
- Continuous Output Power: 4000 Watts
- Surge Rating: 12,000 Watts (for 20 Seconds)
- Output Voltage: 120/240 VAC – Split Phase 60Hz
- Output Waveform: Pure Sine Wave / Same as Input (Bypass Mode)
- Nominal Efficiency:>88% (Peak)
- Line Mode Efficiency:>95%
- Output Frequency: 60Hz ± 0.3Hz
- Transfer Time: 10ms (Max)
- Total Harmonic Distortion (THD): < 10% DC
- Operating Temperature Range: 14°F to 122°F (-10°C to 50°C)
Input Specifications:
- Nominal Input Voltage: 12.0V DC
- Minimum Start Voltage: 10.0V DC
- Low Battery Alarm: 10.5V – 11.0V
- Low Battery Trip: 10.0V – 10.5V
- High Voltage Alarm: 16.0V DC
- Battery Voltage Restart: 15.5V DC
- Idle Consumption: 50W (Power Saver Mode: 21W)
Charger Specifications:
- Charger Rate: 115A
- Charge Protection Shutdown: 15.7V
- Selectable Charge Setting: Based on battery type
- Adjustable Charge Current: Off-20%-100%
- Four-Stage Smart Charger
Transfer Switch Specifications:
- 40 Amp Automatic Transfer Switch
- Transfer Time: 10ms (Max)
Dimensions:
- Unit Weight: 75 lbs
- Unit Size (L x W x H): 31.5″ x 8.75″ x 7.25″
- Shipping Weight: 87 lbs
- Shipping Size (L x W x H): 35.5″ x 14.5″ x 13.5″
