Description

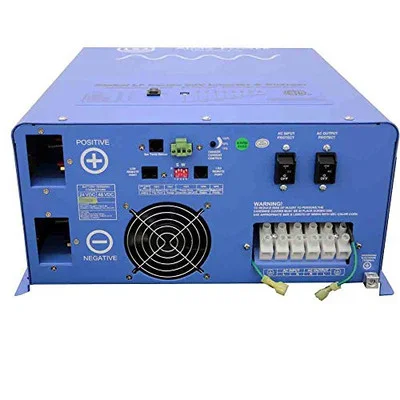

AIMS Power 4000W Pure Sine Inverter Charger is a high-performance inverter designed to efficiently convert DC power to AC power for various applications. With UL and CSA certifications, the AIMS Power 4000W Pure Sine Inverter Charger ensures safety and reliability. It features a multi-stage 45A smart charger that supports lithium LiFePO4, AGM, gel, and lead batteries. The inverter’s auto frequency and selectable power-save mode ensure efficient operation while reducing energy consumption.
Key Features & Specifications:
- Continuous Output Power: 4000 Watts
- Surge Power: 12000 Watts (20 seconds)
- Output Voltage: 100-110-120V AC (single-phase)
- Output Waveform: Pure Sine Wave / Same as Input (Bypass Mode)
- Nominal Input Voltage: 24V DC
- Surge Capability: 300% for 20 seconds
- Battery Charger Rate: 45A (supports lithium LiFePO4, AGM, gel, and lead batteries)
- Battery Priority Selector: Yes
- Transfer Time: 10ms (max)
- Automatic Transfer Switch: Included (50A)
- Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
- Efficiency:>88% (Peak), Line Mode Efficiency>95%
- Idle Consumption: 52.5W, <25W>
- Operating Temperature: 14°F to 122°F (-10°C to 50°C)
- Input Voltage Range: 20V-32V DC
- Safety Features: Short-circuit protection, over-temperature protection, over-load protection
- Dimensions (L x W x H): 19″ x 16.5″ x 8″
- Weight: 84 lbs
- Warranty: 2 Years
- Certifications: UL 458, UL 1741, UL 1012, CSA 22.2 No 107.1 & 107.2
