Description

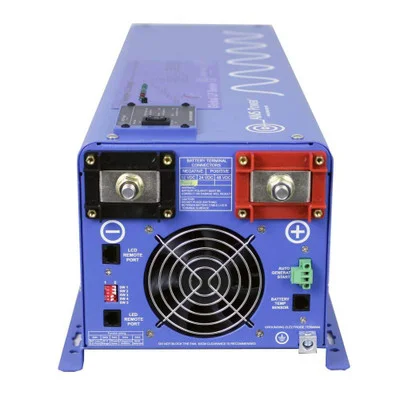

AIMS Power PICOGLF40W48V240VS 4000 Watt Pure Sine Inverter Charger is a reliable solution for backup and off-grid power applications. With a built-in transfer switch and a multi-stage smart charger, this inverter delivers efficient power conversion. Designed for heavy-duty use, it provides a surge capacity of 12,000 watts, making it perfect for running high-demand appliances and tools. The marine-coated design protects against humidity and dust, making it ideal for RVs, boats, and mobile applications. Equipped with dual thermally-controlled fans and over-temperature protection, this inverter ensures safe operation under extreme conditions. Additional features like a battery priority selector and remote panel availability give users complete control over their power needs.
Features:
- 4000-watt continuous power with 12,000-watt surge capacity.
- Pure sine wave output supports sensitive electronics.
- Built-in 50A automatic transfer switch.
- Multi-stage smart charger with adjustable settings.
- Marine-coated circuit boards for dust and moisture resistance.
- Battery priority selector for customized power management.
- Dual thermally controlled cooling fans for optimal performance.
- Remote panel available for convenient monitoring.
Benefits:
- Reliable off-grid and backup power for homes, RVs, and boats.
- Seamless transition with a fast 10ms transfer time.
- Protects and extends battery life with smart charging.
- Withstands extreme conditions with thermal protection.
- Provides clean power for sensitive electronics and appliances.
Technical Specifications:
- Model: PICOGLF40W48V240VS
- Continuous Output Power: 4000 Watts
- Surge Rating: 12000 Watts (20 Seconds)
- Output Voltage: 110/120/220/240 Vac
- Output Waveform: Pure Sine (Bypass Mode)
- Nominal Efficiency:88% (Peak)
- Line Mode Efficiency:95%
- Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
- Typical Transfer Time: 10ms (Max)
- Total Harmonic Distortion (THD): <10>
- Nominal Input Voltage: 48.0 Vdc
- Minimum Start Voltage: 44.0 Vdc
- Low Battery Alarm: 42 Vdc – 44.0 Vdc
- Idle Consumption: 1.67 Amps DC
- Charger Rate: 40A
- Over Charge Protection Shutdown: 62.8V
- Dimensions: 23.5 x 8.74 x 7.10 inches
- Unit Weight: 64 lbs.
- Shipping Dimensions: 30.5 x 14.25 x 13.75 inches
- Shipping Weight: 75 lbs.
- Automatic Transfer Switch: 50 Amp @ 120Vac or 30 Amp @ 240Vac
