Description

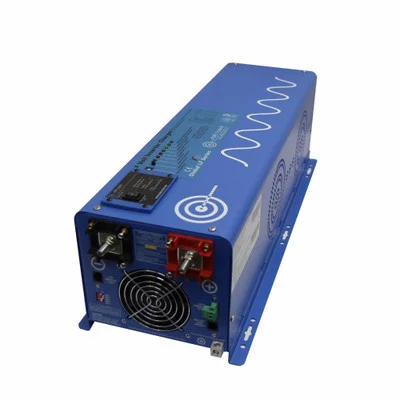

The AIMS Power PICOGLF40W24V120V 4000 Watt Pure Sine Inverter Charger is an exceptional choice for creating a reliable power system. Its high-wattage capacity enables seamless operation of sensitive electronics, perfect for industrial use, recreational vehicles, or marine applications. The inverter charger accepts power from any source, including generators and shore power, and features auto frequency detection for global compatibility. This unit is ideal for applications like powering aftermarket stereo equipment on boats or running essential electronics in motorhomes. With a battery priority mode, it can operate directly from a battery bank, maximizing efficiency and ensuring that backup power is available when needed. The Power Saver mode conserves energy by entering a low-power state when the load is minimal, further extending battery life.
Specifications:
- Continuous Output Power: 4000 Watts
- Surge Rating: 12000 Watts (20 Seconds)
- Output Voltage: 100-110-120 Vac
- Output Waveform: Pure Sine/Same as input (Bypass Mode)
- Nominal Efficiency:>88% (Peak)
- Line Mode Efficiency:>95%
- Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
- Typical Transfer Time: 10ms (Max)
- Total Harmonic Distortion (THD): <10>
- Nominal Input Voltage: 24.0 Vdc
- Minimum Start Voltage: 20.0 Vdc
- Idle Consumption: 5 Amps DC
- Charger Rate: 50A
- Over Charge Protection Shutdown: 31.4V
- Dimensions: 23.5 x 8.59 x 7.05 inches
- Unit Weight: 62 lbs.
- Shipping Dimensions: 29.13 x 12.40 x 11.81 inches
- Shipping Weight: 72 lbs.
- Automatic Transfer Switch: 40 Amp, 10 ms (max)
- Multi-stage smart charger with 7 battery type settings
- Product Manual included
