Description

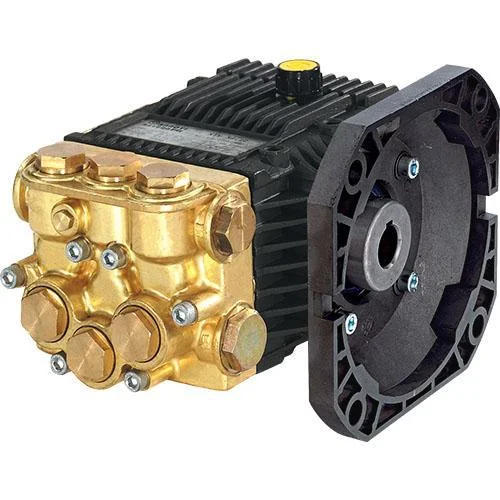

Annovi Reverberi AR XTV3G22E-F8 horizontal gas engine triplex plunger pump is rated up to 3 GPM at max 2200 PSI at 3400 RPM using a ½ ”F inlet and 3/8″F discharge thread. E version 5/8” with a gas engine flange.
| Max GPM | 3 |
| Max L/Min | 11.4 |
| Max PSI | 2200 |
| MaxBar | 150 |
| Power EBHP | 4.5 |
| Bore Dia mm | 15 |
| Stroke mm | 7.2 |
| Crankshaft ID Stamp | C |
| Inlet | 1/2″ F |
| Outlet | 3/8″ F |
| Max Temp | 140° F |
| Oil Capacity (oz) | 10 |
| Weight | 11 |
| RPM | 3400 |
| Shaft Size | 5/8″ |
| Shaft Version | E |
| Shaft Type | Hollow |
